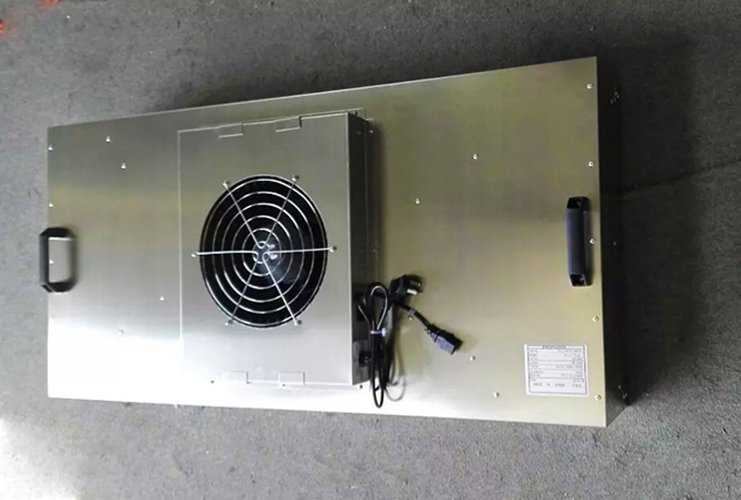

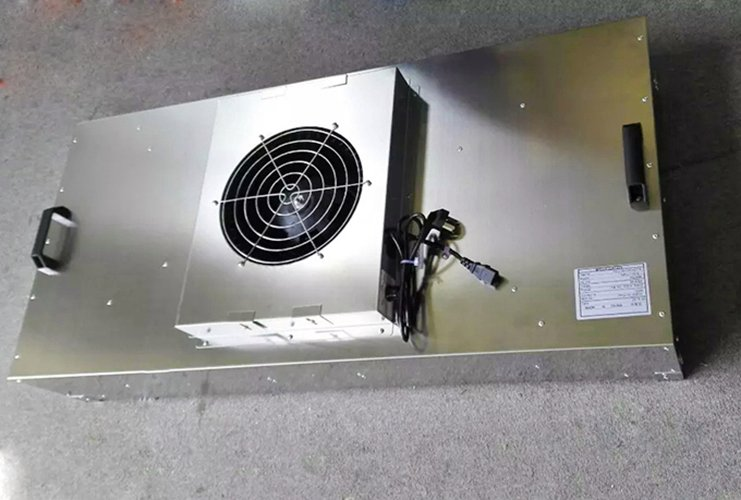

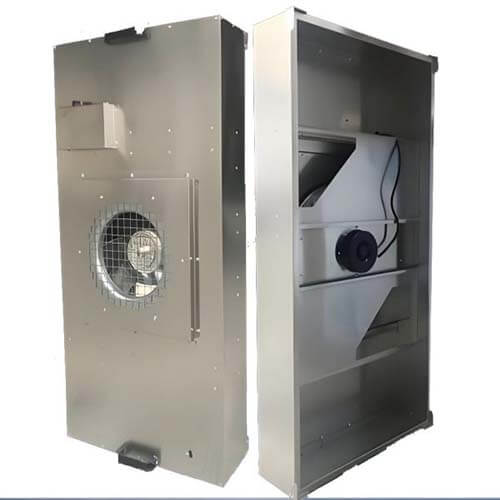

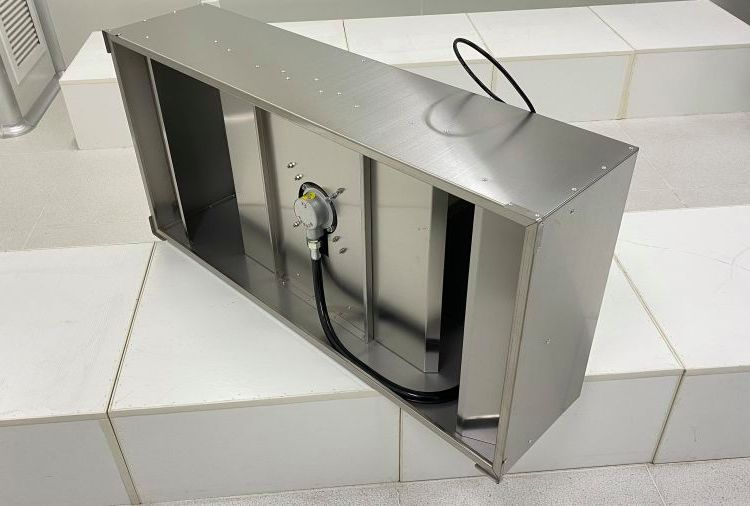

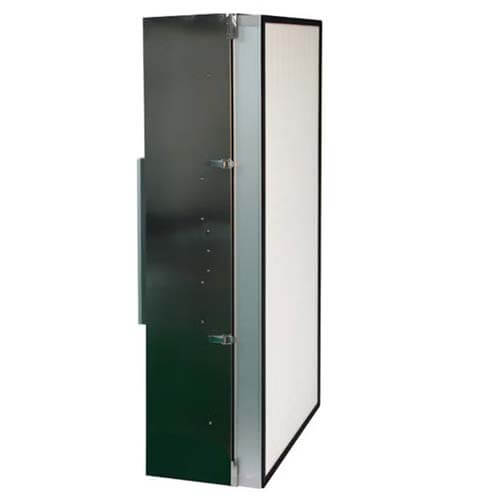

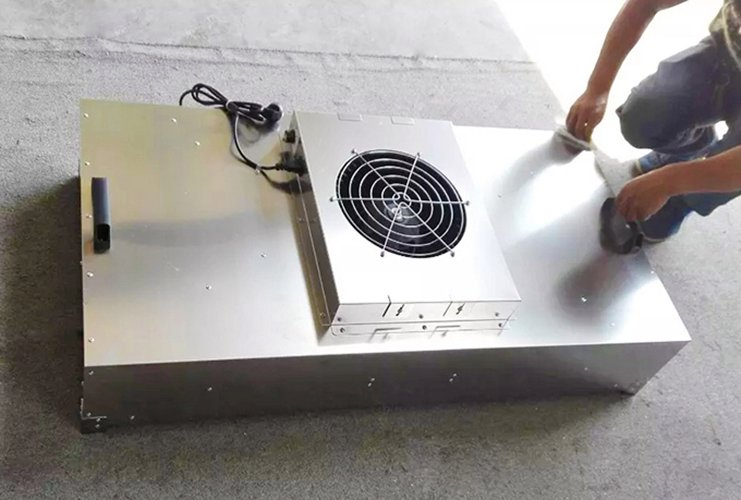

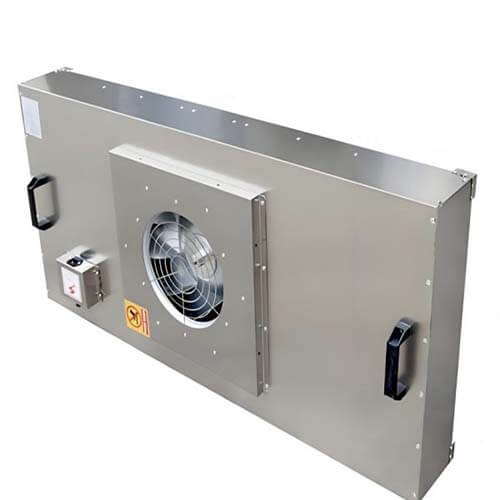

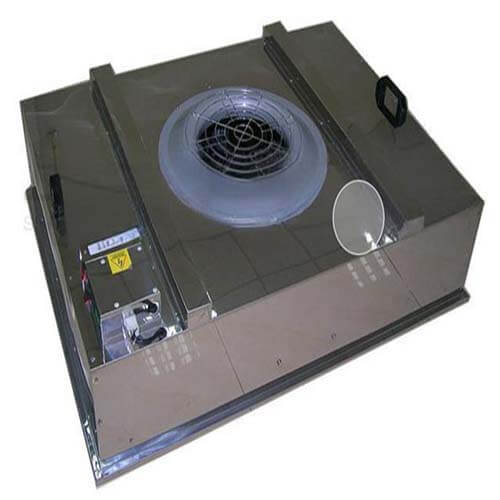

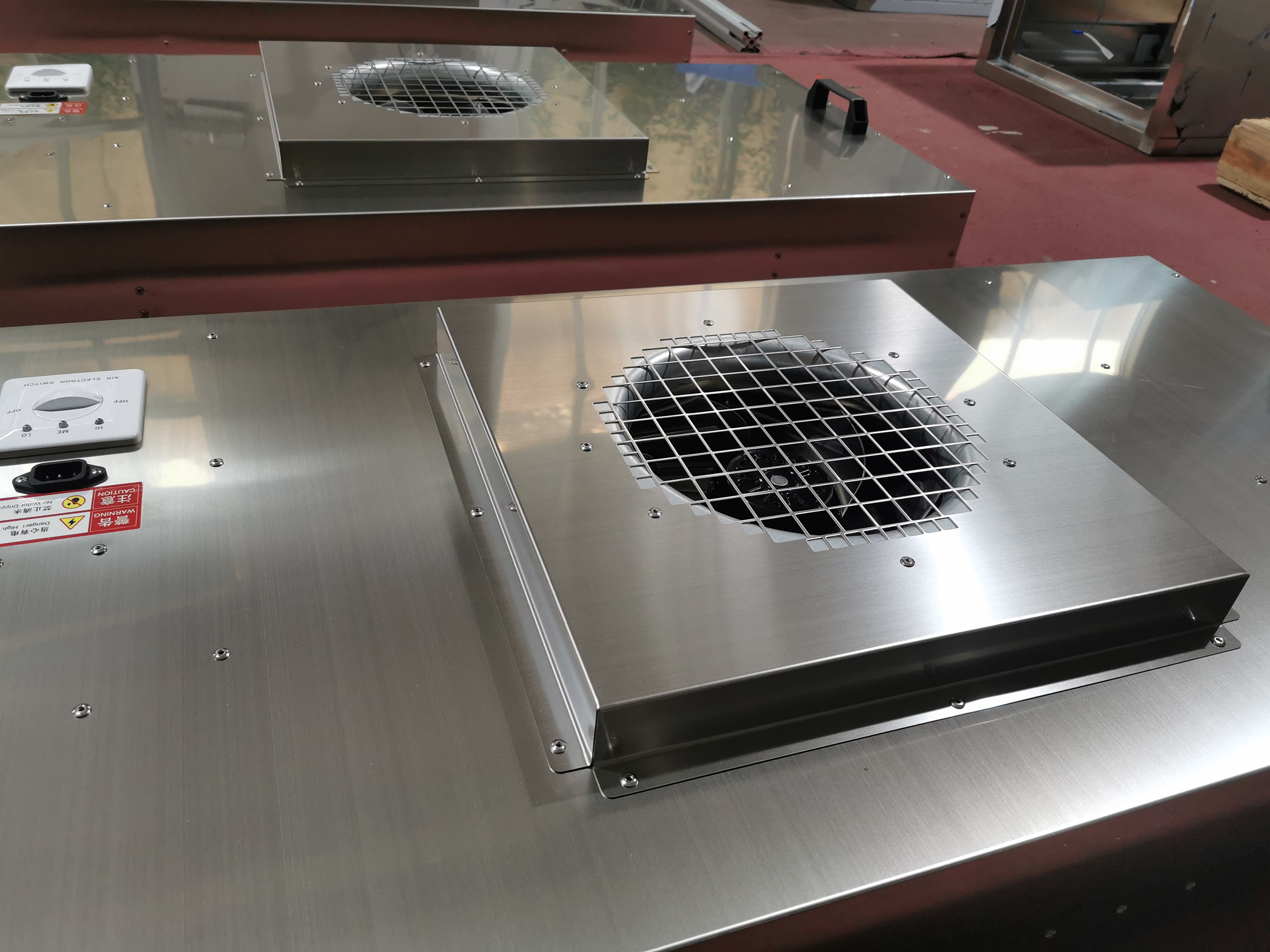

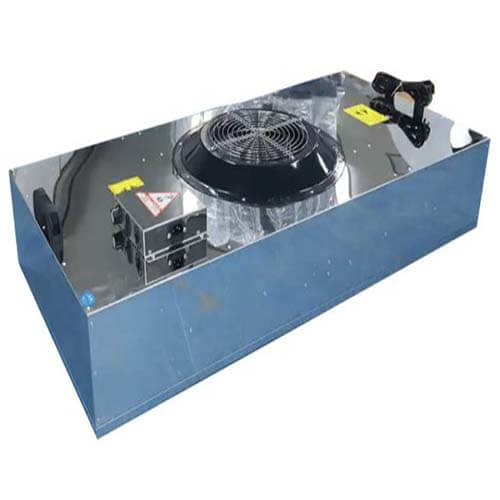

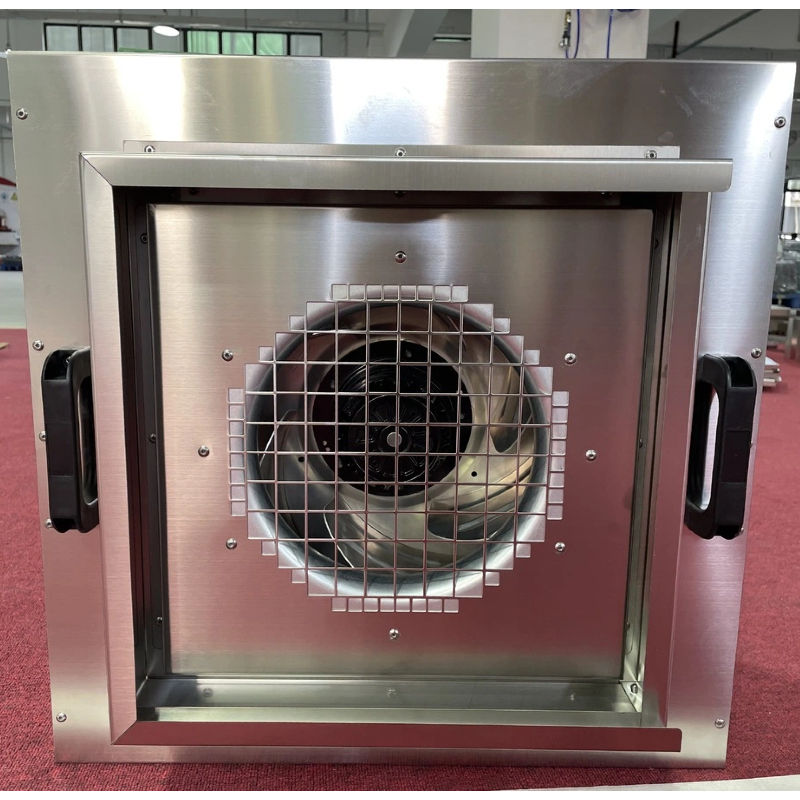

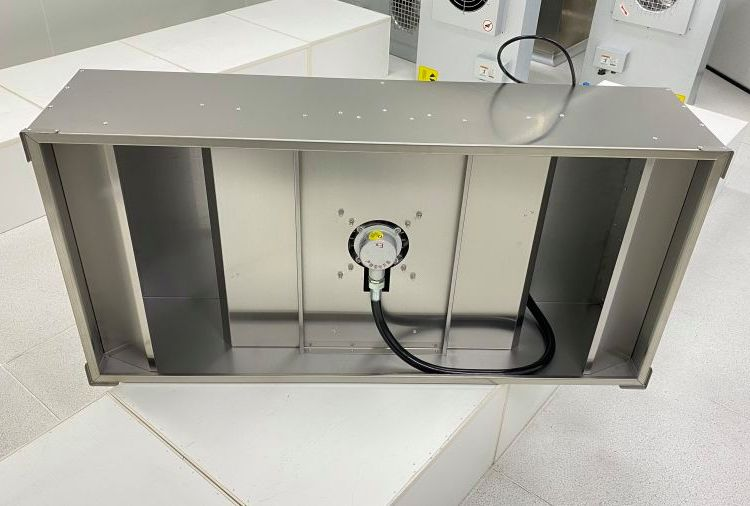

Deiiang ®️ Stainless Steel FFU
Deiiang® Stainless Steel FFUs combine corrosion-resistant 304/316 stainless steel construction with high-efficiency HEPA/ULPA filtration for hygienic, durable cleanroom operation.Engineered with vibration-isolated fans and sealed housings, they deliver stable laminar airflow, low noise, and reliable particle control in demanding environments.Modular, easy-to-clean design with customizable airflow, control options, and simple filter replacement ensures long-term performance for pharmaceutical, food, and semiconductor facilities.
- Width：575mm，615mm，920mm，1175mm，1225mm
- Length：575mm，615mm，575mm，1175mm
- Height：230mm，260mm
- box material：SS304
- Air volume (㎡/h)：500，600，900，1000，1200，2000
- Fan Model：#315，#400，#470
- Average wind speed (m/s)：0.3~0.5
- External static pressure：190(10mmAq)
- power：120w，200w，230w
- Noise：55-63
- Filter size(mm)：570x570x69，610x610x69，915x610x69，1170x570x69，1220x610x69，1170x1170x69
- Filter efficiency：9.99%@0.3μm
- Initial pressure loss：110Pa@0.45m/s
- Power supply(V/Hz)：220/50
- Fan vibration coefficient：0.2~0.5
- Current type：DC，AC
if this fits your vehicle.
Dispatch within 24 Hours : Your product will be shipped quickly.
3-Year Warranty: Ignavo is safe with warranty conditions.
| Size | Air volume (㎡/h) | Average wind speed (m/s) | power | Fan vibration coefficient | Current type | Price | Stock |
|---|---|---|---|---|---|---|---|
| 575Wx575Lx230H | 500 | 0.3~0.5 | 120w | 0.2~0.5 | DC | $266.00 | In Stock |
| 615Wx615Lx230H | 600 | 0.3~0.5 | 120w | 0.2~0.5 | DC | $292.00 | In Stock |
| 920Wx615Lx230H | 900 | 0.3~0.5 | 120w | 0.2~0.5 | DC | $317.00 | In Stock |
| 1175Wx575Lx230H | 1000 | 0.3~0.5 | 200w | 0.2~0.5 | DC | $342.00 | In Stock |
| 1225Wx615Lx230H | 1200 | 0.3~0.5 | 200w | 0.2~0.5 | DC | $380.00 | In Stock |
| 1175Wx1175Lx260H | 2000 | 0.3~0.5 | 230w | 0.2~0.5 | DC | $418.00 | In Stock |
| 575Wx575Lx230H | 500 | 0.3~0.5 | 120w | 0.2~0.5 | AC | $203.00 | In Stock |
| 615Wx615Lx230H | 600 | 0.3~0.5 | 120w | 0.2~0.5 | AC | $228.00 | In Stock |
| 920Wx615Lx230H | 900 | 0.3~0.5 | 120w | 0.2~0.5 | AC | $254.00 | In Stock |
| 1175Wx575Lx230H | 1000 | 0.3~0.5 | 200w | 0.2~0.5 | AC | $279.00 | In Stock |
| 1225Wx615Lx230H | 1200 | 0.3~0.5 | 200w | 0.2~0.5 | AC | $317.00 | In Stock |
| 1175Wx1175Lx260H | 2000 | 0.3~0.5 | 230w | 0.2~0.5 | AC | $355.00 | In Stock |
Please select a product variation to view details
Product Options
Air volume (㎡/h)
Average wind speed (m/s)
power
Fan vibration coefficient
Current type
Description
Features:
Deiiang® Stainless Steel FFUs are constructed from corrosion-resistant 304/316 stainless steel with sealed housings and sanitary welds for cleanability. Each unit integrates high-efficiency HEPA or ULPA filtration, vibration-isolated backward- or forward-curved fans, and variable-speed drives to deliver stable, uniform laminar airflow. Optional sensors, differential pressure ports, and GMP-compliant gaskets are available for monitoring and validation.
Advantages:
The stainless-steel construction provides superior durability and chemical resistance for pharmaceutical, food, and semiconductor environments, reducing contamination risk and easing decontamination. Energy-efficient motor controls and precision fans minimize power consumption and noise while maintaining consistent particle removal and airflow uniformity. Modular design and easy-access filter mounts simplify maintenance, lower downtime, and support regulatory compliance.
How to Use:
Install the FFU according to the facility’s cleanroom layout, ensuring proper mounting, sealing, and electrical connections per local codes and manufacturer instructions. Commission by verifying airflow, filter integrity, and pressure differentials using calibrated instruments; adjust fan speed to achieve required cleanroom class. Perform routine maintenance: replace HEPA/ULPA filters when differential pressure exceeds set limits, clean external surfaces with approved agents, and inspect fans, seals, and controls on a scheduled basis.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 575Wx575Lx230H, 615Wx615Lx230H, 920Wx615Lx230H, 1175Wx575Lx230H, 1225Wx615Lx230H, 1175Wx1175Lx260H |
| Air volume (㎡/h) | 500, 600, 900, 1000, 1200, 2000 |
| Average wind speed (m/s) | 0.3~0.5 |
| power | 120w, 200w, 230w |
| Fan vibration coefficient | 0.2~0.5 |
| Current type | DC, AC |
