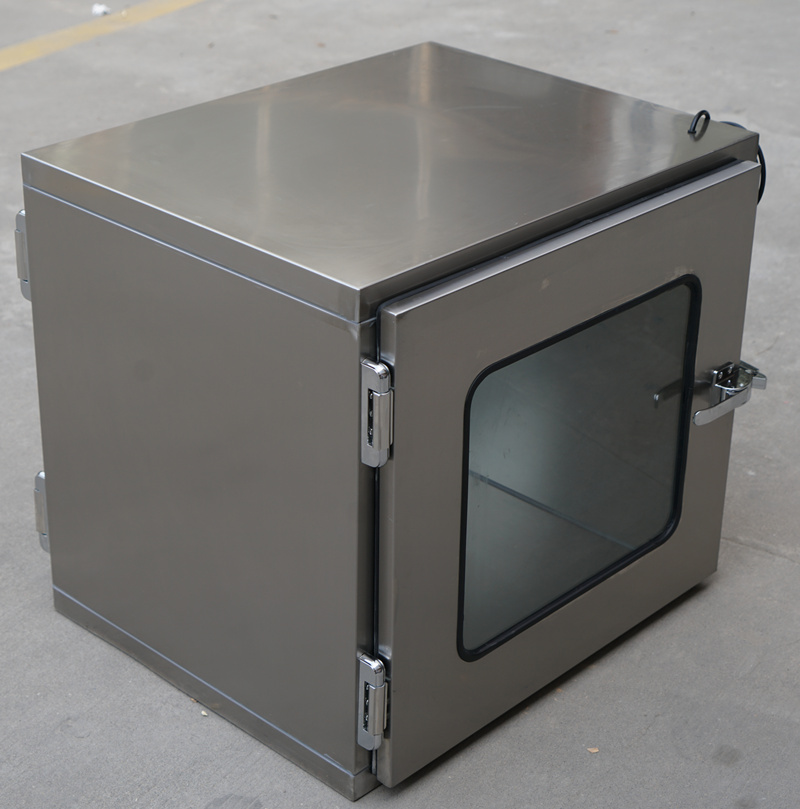

Deiiang™ Air Shower PassBox
The Deiiang™ Air Shower Pass Box provides rapid particle removal for transferred items using targeted, HEPA‑filtered air jets and timed purge cycles.Designed by Deiiang Jason.peng, it features interlocked doors, low-shedding interiors, and easy‑clean surfaces for reliable contamination control.Compact and energy‑efficient, it integrates smoothly into ISO 5–8 workflows for pharmaceutical, semiconductor, and biotech facilities.
- Outer Width：880mm，996mm，1080mm
- Outer Depth：590mm，670mm，790mm
- Outer Height：1450mm，1550mm，1650mm
- Internal Width：500mm，600mm，700mm
- Internal Depth：500mm，600mm，700mm
- Internal Height：500mm，600mm，700mm
- Pre-filter(mm)：470*290*17，645*290*17，695*290*17
- HEPA(mm)：610*610*120
- power：220V/50Hz/550W
- air volume：1200
- Noise：<65
- Fan Speed：2800
- Extrusion nozzle：SSΦ30(4pcs)，SSΦ30(≥4pcs)，SSΦ30(≥4pcs)
- Efficiency：>99.99%@0.3μm
- Box material：304SS，201SS
if this fits your vehicle.
Dispatch within 24 Hours : Your product will be shipped quickly.
3-Year Warranty: Ignavo is safe with warranty conditions.
| External Dimension | Internal dimension | Pre-filter | HEPA | Extrusion nozzle | Box material | Price | Stock |
|---|---|---|---|---|---|---|---|
| 880W*590D*1450H | 500W*500D*500H | 470*290*17 | 610*610*120 | SSΦ30(4pcs) | 304SS | $958.00 | In Stock |
| 996W*670D*1550H | 600W*600D*600H | 645*290*17 | 610*610*120 | SSΦ30(≥4pcs) | 304SS | $1,014.00 | In Stock |
| 1080W*790D*1650H | 700W*700D*700H | 695*290*17 | 610*610*120 | SSΦ30(≥4pcs) | 304SS | $1,056.00 | In Stock |
| 880W*590D*1450H | 500W*500D*500H | 470*290*17 | 610*610*120 | SSΦ30(4pcs) | 201SS | $862.00 | In Stock |
| 996W*670D*1550H | 600W*600D*600H | 645*290*17 | 610*610*120 | SSΦ30(≥4pcs) | 201SS | $913.00 | In Stock |
| 1080W*790D*1650H | 700W*700D*700H | 695*290*17 | 610*610*120 | SSΦ30(≥4pcs) | 201SS | $951.00 | In Stock |
Please select a product variation to view details
Product Options
Internal dimension
Pre-filter
HEPA
Extrusion nozzle
Box material
Description
The Deiiang™ Air Shower Pass Box is an advanced contamination control apparatus featuring a dedicated air shower chamber integrated with a transfer pass box. It achieves ISO 5 air cleanliness during operation, complying with ISO 14644-1 standards. The design by Deiiang Jason.peng ensures high-velocity HEPA-filtered airflow at 20-25 m/s from multiple nozzles, calculated using P = ρAV³/2 where ρ is air density and V is velocity, providing effective particle removal.
Application Fields
This hybrid system serves critical roles in:
-
Pharmaceutical Manufacturing: Transferring bulk materials between Grade C and B areas while removing surface particles
-
Electronics Assembly: Preventing particulate contamination during component transfer to ISO 5 environments
-
Food Processing: Maintaining hygiene standards while moving packaging materials, as validated by contamination control expert Dr. Robert Kim
Features
Key technical specifications include:
-
Dual-Chamber Design: Separate air shower and transfer compartments with independent control systems
-
High-Efficiency Filtration: HEPA filters with 99.99% efficiency on 0.3μm particles per EN 1822
-
Stainless Steel Construction: 304 or 316L options with electropolished surfaces (Ra <0.6μm)
-
Automated Cycle Control: Programmable shower duration (15-60 seconds) and interlock systems
Advantages
Implementing the Deiiang™ solution provides:
-
Enhanced Contamination Control: Removes >99% of surface particles from materials and containers
-
Operational Efficiency: Processes up to 40% more materials per hour compared to standard pass boxes
-
Space Optimization: Combines two critical functions in a single footprint (typically 2-3m²)
-
Regulatory Compliance: Meets FDA cGMP and EU GMP requirements for material transfer
Usage Methods
For optimal performance:
-
Place materials in air shower chamber and initiate automated decontamination cycle
-
After shower completion (typically 30 seconds at 22 m/s), transfer to pass box compartment
-
Retrieve from clean side after pressure equalization
Regular maintenance per Deiiang Jason.peng's protocols, including velocity verification and filter testing, ensures consistent performance.
Images and Videos
Features and Advantages
Specifications
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| External Dimension | 880W*590D*1450H, 996W*670D*1550H, 1080W*790D*1650H |
| Internal dimension | 500W*500D*500H, 600W*600D*600H, 700W*700D*700H |
| Pre-filter | 470*290*17, 645*290*17, 695*290*17 |
| HEPA | 610*610*120 |
| Extrusion nozzle | SSΦ30(4pcs), SSΦ30(≥4pcs) |
| Box material | 304SS, 201SS |
