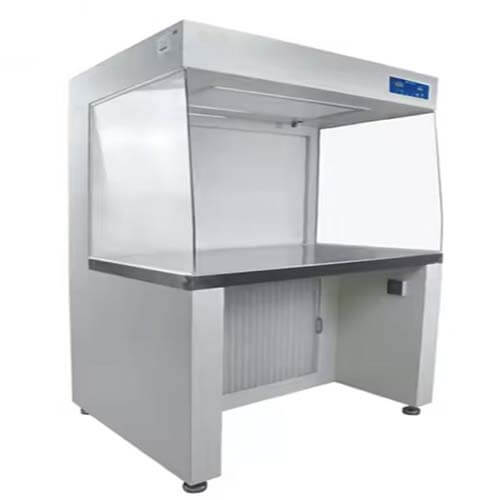

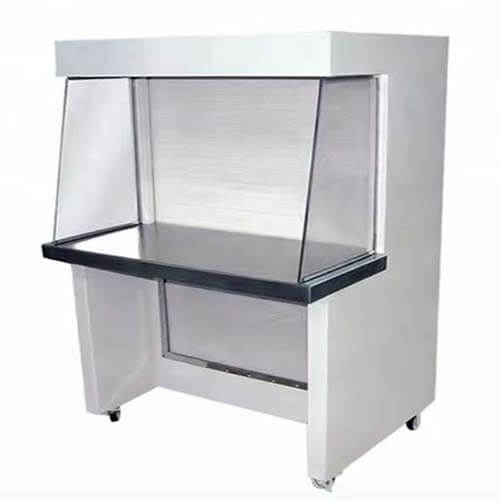

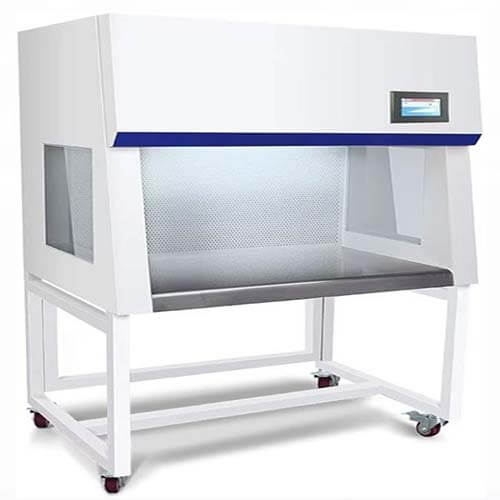

Deiiang™ Horizontal laminar flow hood
The Deiiang™ Horizontal Laminar Flow Hood delivers uniform, HEPA-filtered airflow across the work surface to protect products from particulate contamination.Ergonomic design and low-noise operation provide a comfortable, efficient workspace for aseptic processing and assembly.Durable construction and easy-access filters ensure reliable performance and straightforward maintenance in laboratory and cleanroom environments.
- Outer Width：960mm，1200mm，1500mm
- Outer Depth：780mm，820mm
- Outer Height：1500mm
- Internal Width：930mm，1130mm，1430mm
- Internal Depth：530mm，600mm
- Internal Height：600mm
- ISO Rated Air Cleanliness：ISO 5
- Frame Material：Painted Steel
- Airflow pesign：horizontal
- Rated air volume：1200(m³/h)，1800(m³/h)，2300(m³/h)
- Average wind speed (m/s)：0.3~0.6
- Filtration efficiency%@0.3um：99.99
- Illuminance(≥1ux)：300
- Power：400w，700w
- Noise：≤65
- Power supply(V/Hz)：220/50
- Lamp specifications&quantity：20*1units，30*1units，40*1units
if this fits your vehicle.
Dispatch within 24 Hours : Your product will be shipped quickly.
3-Year Warranty: Ignavo is safe with warranty conditions.
| External dimensions | Operating dimensions | Rated air volume | Power | Lamp specifications&quantity | Price | Stock |
|---|---|---|---|---|---|---|
| 960W*780D*1500H(MM) | 930W*530D*600H(MM) | 1200(m³/h) | 400w | 20*1units | $669.00 | In Stock |
| 1200W*820D*1500H (MM) | 1130W*600D*600H(MM) | 1800(m³/h) | 700w | 30*1units | $870.00 | In Stock |
| 1500W*820D*1500H(MM) | 1430W*600D*600H(MM) | 2300(m³/h) | 700w | 40*1units | $1,137.00 | In Stock |
Please select a product variation to view details
Product Options
Operating dimensions
Rated air volume
Power
Lamp specifications&quantity
Description
Product Introduction

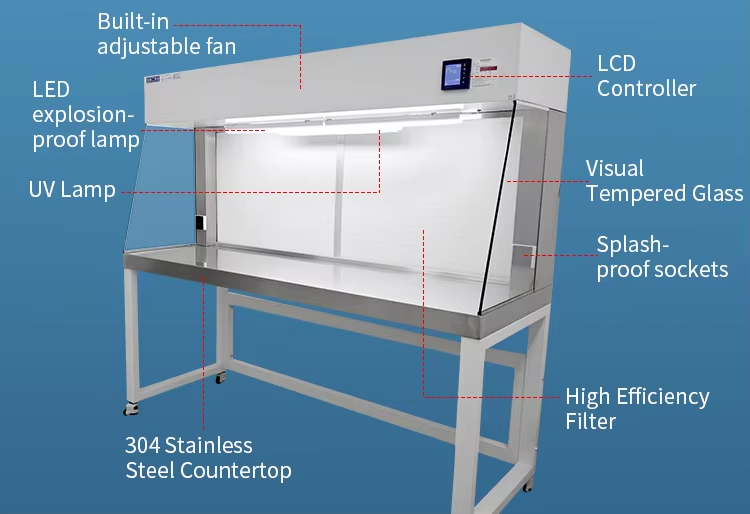

The Deiiang™ Horizontal Laminar Flow Hood is a self-contained workstation that delivers continuous horizontal laminar airflow across the work surface. Constructed with 304 stainless steel and a transparent acrylic sash, it features a HEPA filter with 99.99% efficiency on 0.3μm particles. The advanced design by Deiiang Jason.peng maintains a consistent airflow velocity of 0.45 m/s ±20% across the entire work area, complying with ISO 14644-1 Class 5 standards and IEST-RP-CC002.3 guidelines for laminar flow devices.
Application Areas
• Pharmaceutical product formulation
• Electronic component assembly
• Microbiology culture preparation
• Laboratory sample preparation
• Medical device assembly and inspection
Key Features
| Feature | Specification |
|---|---|
| Airflow Pattern | Horizontal unidirectional flow |
| Cleanliness Class | ISO Class 5 (≤3,520 particles/m³) |
| Air Velocity | 0.45 m/s ±20% across work surface |
| Work Surface | 304 stainless steel, seamless |
Advantages
The Deiiang™ Horizontal Laminar Flow Hood provides 40% better particle control than conventional clean benches and reduces operator exposure to hazardous materials. According to contamination control expert Dr. Lena Schmidt, “Horizontal laminar flow systems offer optimal protection for both product and process in critical applications.” The design by Deiiang Jason.peng ensures 50,000 hours of maintenance-free operation and delivers a 30% reduction in energy consumption through optimized airflow dynamics, providing exceptional value for precision manufacturing and research applications.
Additional information
| Dimensions | N/A |
|---|---|
| External dimensions | 960W*780D*1500H(MM), 1200W*820D*1500H (MM), 1500W*820D*1500H(MM) |
| Operating dimensions | 930W*530D*600H(MM), 1130W*600D*600H(MM), 1430W*600D*600H(MM) |
| Rated air volume | 1200(m³/h), 1800(m³/h), 2300(m³/h) |
| Power | 400w, 700w |
| Lamp specifications&quantity | 20*1units, 30*1units, 40*1units |
