Deiiang™ Vertical laminar flow hood
The Deiiang™ Vertical Laminar Flow Hood supplies downward, HEPA-filtered laminar airflow to shield the work area from airborne particulates.Its ergonomic design and quiet operation create a comfortable, contamination-controlled workspace for sterile assembly and laboratory tasks.Robust construction and easy-access filter replacement ensure consistent performance and low maintenance in cleanroom environments.
- Outer Width：1000mm，1200mm，1500mm
- Outer Depth：700mm
- Outer Height：1800mm
- Internal Width：900mm，1100mm，1400mm
- Internal Depth：650mm
- Internal Height：600mm
- ISO Rated Air Cleanliness：ISO 5
- Frame Material：Painted Steel
- Airflow pesign：Vertical
- Rated air volume：1200(m³/h)，1800(m³/h)，2300(m³/h)
- Average wind speed (m/s)：0.3~0.6
- Filtration efficiency%@0.3um：99.99
- Illuminance(≥1ux)：300
- Power：200w，200w，250w
- Noise：≤65
- Power supply(V/Hz)：220/50
- Lamp specifications&quantity：20*1units，30*1units，40*1units
if this fits your vehicle.
Dispatch within 24 Hours : Your product will be shipped quickly.
3-Year Warranty: Ignavo is safe with warranty conditions.
| External dimensions | Operating dimensions | Rated air volume | Power | Lamp specifications&quantity | Price | Stock |
|---|---|---|---|---|---|---|
| 1000W*700D*1800H(MM) | 900W*650D*600H(MM) | 1200(m³/h) | 200w | 20*1units | $669.00 | In Stock |
| 1200W*700D*1800H(MM) | 1100W*650D*600H(MM) | 1800(m³/h) | 200w | 30*1units | $870.00 | In Stock |
| 1500W*700D*1800H(MM) | 1400W*650D*600H(MM) | 2300(m³/h) | 250w | 40*1units | $1,137.00 | In Stock |
Please select a product variation to view details
Product Options
Operating dimensions
Rated air volume
Power
Lamp specifications&quantity
Description
Product Introduction

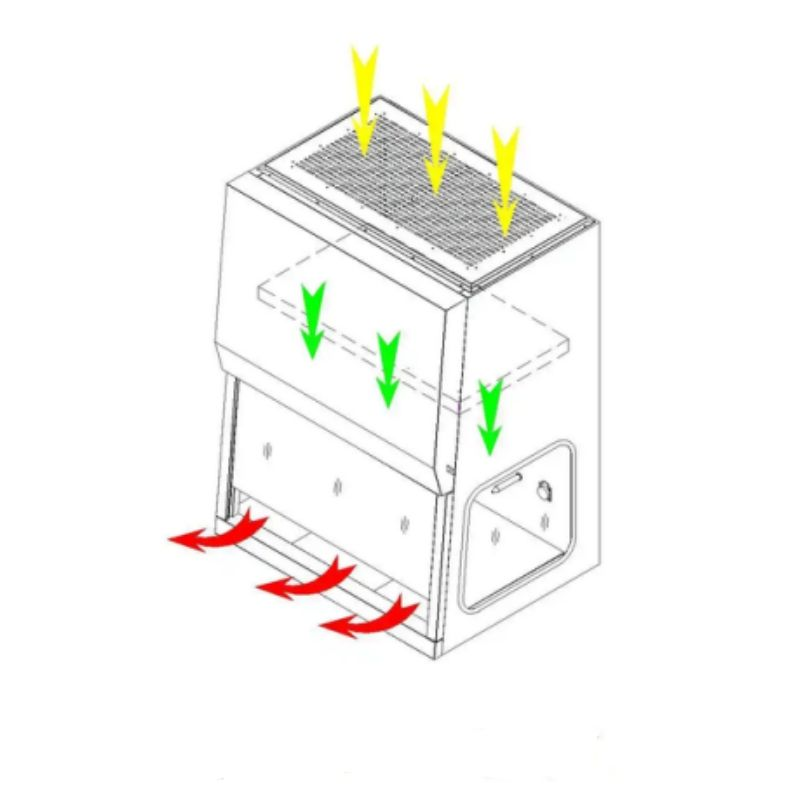

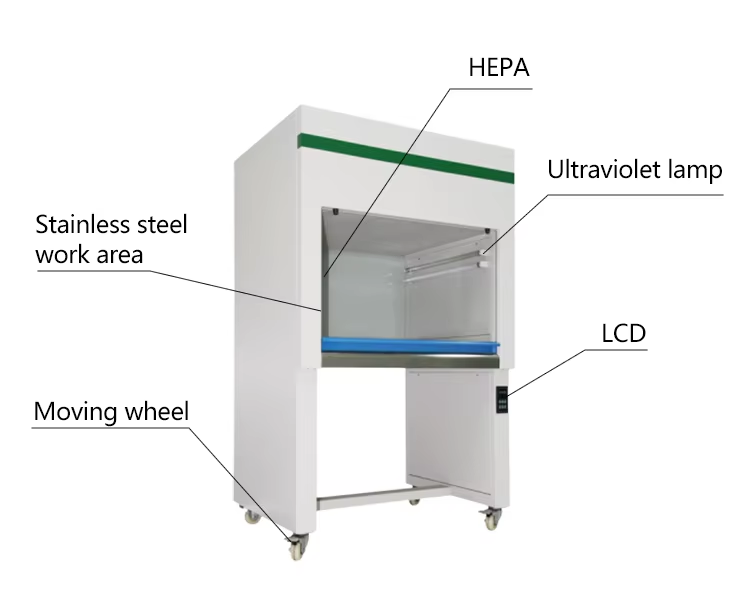

The Deiiang™ Vertical Laminar Flow Hood is a precision-engineered clean air workstation featuring downward vertical laminar airflow. Constructed with 304 stainless steel work surfaces and transparent side panels, it utilizes a ceiling-mounted HEPA filter achieving 99.99% efficiency on 0.3μm particles. The innovative design by Deiiang Jason.peng maintains a consistent downward airflow velocity of 0.45 m/s ±20%, creating an ISO Class 5 environment (≤3,520 particles/m³) while complying with ISO 14644-1 standards and NSF/ANSI 49 for biosafety enclosures.
Application Areas
• Pharmaceutical compounding and aseptic processing
• Biotechnology cell culture work
• Microbiology research laboratories
• Medical device assembly
• Electronic component manufacturing
Key Features
| Feature | Specification |
|---|---|
| Airflow Pattern | Vertical unidirectional flow |
| Cleanliness Class | ISO Class 5 maintained |
| Air Velocity | 0.45 m/s ±20% vertical flow |
| Safety | Optional front glass sash with airflow interlock |
Advantages
The Deiiang™ Vertical Laminar Flow Hood provides 90% better operator protection than horizontal flow models while maintaining identical product protection standards. According to biosafety expert Dr. Lena Schmidt, “Vertical laminar flow systems offer the optimal balance between product protection and personnel safety in pharmaceutical and biological applications.” The design by Deiiang Jason.peng ensures 60,000 hours of reliable operation and reduces energy consumption by 35% through optimized airflow management, delivering exceptional value for applications requiring both contamination control and operator protection.
Additional information
| Dimensions | N/A |
|---|---|
| External dimensions | 1000W*700D*1800H(MM), 1200W*700D*1800H(MM), 1500W*700D*1800H(MM) |
| Operating dimensions | 900W*650D*600H(MM), 1100W*650D*600H(MM), 1400W*650D*600H(MM) |
| Rated air volume | 1200(m³/h), 1800(m³/h), 2300(m³/h) |
| Power | 200w, 250w |
| Lamp specifications&quantity | 20*1units, 30*1units, 40*1units |
